SUNTECH Weaving Loom Woven,Non-woven,knitted fabric Take Up Batch winder Motion

SUNTECH Weaving Loom Woven,Non-woven,knitted fabric Take Up Batch winder Motion

SUNTECH Weaving Loom Woven,Non-woven,knitted fabric Take Up Batch winder Motion
SUNTECH Weaving Loom Woven,Non-woven,knitted fabric Take Up Batch winder MotionSUNTECH Weaving Loom Woven,Non-woven,knitted fabric Take Up Batch winder MotionSUNTECH Weaving Loom Woven,Non-woven,knitted fabric Take Up Batch winder MotionSUNTECH Weaving Loom Woven,Non-woven,knitted fabric Take Up Batch winder Motion
CategoriesBatch Winders
AlbumView larger image
BrandSuntech
ModelST-LTM
Machine TypeWinding Machine
ConditionNew
CertificationCE
After-sales Service ProvidedOverseas third-party support available
ItemBatcher Winder
Fabric Width1.8-4.0m
Max. Batching Diameter1500mm (standard:1200mm)
Batcher WindingBatcher Winding
Max. Fabric Roll Tension2000N
Edge-alignment ErrorLess than 5mm
FOB portNingbo/Shanghai
Terms of PaymentL/C, D/A, D/P, T/T, Western Union, MoneyGram
Update Time2019-10-17
Detail Information
Automatic Camera Inspection System Could Be Installed On Weaving Machine Or Batch Winder

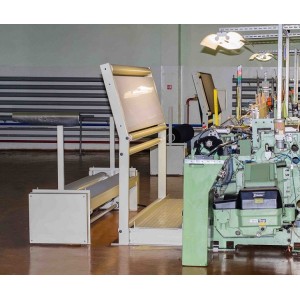

 ST-LTM-01 Loom Take-Up Machine (Batching Motion) is designed to attach all types of weaving machines. Any type of Woven,Non-Woven or Knitted Fabrics can be taken up on the machine and are designed to give tight and compact rolls from the most elastic to heaviest fabrics such as industrial textiles.
1.Fast and easily handled, requiring for one operator only
2.Less fabric waste and increase efficiency
3.Synchronize production process
Speed
0-1.15m/min
Fabric Width
1.8-4.0 meters
Batching Diameter Max
1500mm (Standard: 1200mm)

Edge-alignment Error
<5mm
Electric Specs
3Phase-380V; 50HZ (can be adjusteo to suit for different countries)
Remark: Variable working width is possible and can be tailor-made to your requirements of processing needs
ST-LTM Loom Batching Motion (Batching Unit):

1). Various models available allow Batching of Fabric as well as with On-Loom Inspection

2). Automatic synchronization with the weaving machine

3), Positive tension adjustment allows precise selection for any fabric on any Loom

4). Forward & Reverse (not full) movement of fabric

5). Operator's Platform with anti-fatigue material and toe-guards

6). Crease free winding of fabrio

7). Compact Rolls due to differential ratio of the batcher rolls.

8). Option-Accurate Length Measuring Giving Accuracy of ±0.01%

9). Option-Semi-Automatic Doffing Device (Pneumatic Roll Ejection Device)

10). Option-Automatic Fabric & Selvedge Shifter for Thick Selvedges
