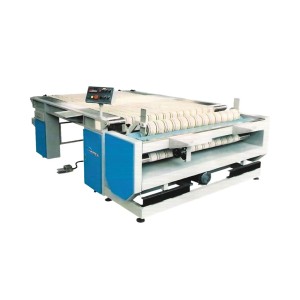

SUNTECH Fabric Inspection Measuring Machine Especially for Home Textile

SUNTECH Fabric Inspection Measuring Machine Especially for Home Textile

SUNTECH Fabric Inspection Measuring Machine Especially for Home Textile
SUNTECH Fabric Inspection Measuring Machine Especially for Home TextileSUNTECH Fabric Inspection Measuring Machine Especially for Home Textile
CategoriesFabric Inspection Machines
AlbumView larger image
BrandSuntech
ModelST-TIM
ConditionNew, Brand New
Automatic GradeAutomatic
Voltage3Phase-380V; 50Hz(can be adjusted to suit for different countires)
Power(W)10 KW
Dimension(L*W*H)3000*2200*1300mm (for model ST-TIM-170 only)
Weight700kgs(for model ST-TIM-170 only)
CertificationCE Mark, ISO 9001: 2008
Warranty13 Months from Date of Shipment
After-sales Service ProvidedEngineers available to service machinery overseas
ItemTextile Inspecting and rewinding Machine
FOB portNingbo/Shanghai
Terms of PaymentL/C, D/A, D/P, T/T, Western Union, MoneyGram
Update Time2019-10-18
Detail Information
SUNTECH Fabric Inspection Measuring Machine Especially for Home Textile
Speed
0-60m/min
Fabric Width
Ideal for home textile with width less than 1800mm
Standard roll diameter
500mm
Dimensions
3000*2200*1300mm(for model ST-TIM-170 Only)
Weight
700kg(for model ST-TIM-170 Only)
Eletic Specs
3Phase - 380v: 50HZ(can be adjusted to suit for different countries)
Remark

Variable working width is possible and can be tailor-made to your requirements of processing needs.

ST-TIM Fabric Measuring Machine
1). Full Width Fabric Inspection - with Fixed Flat Inspection Screen Fabric can be checked under the aid of different viewing and lighting options.
2). Accurate Fabric Length and Optional Weighing Machine
Fabric roll length and weight can be taken by industrial standard measuring systems with digital readout to give consistent fabric roll assessments
3). Accurate Fabric Edge Controlling
Edge alignment photo-sensor for perfect roll generation
4). Consistent Roll output with Twin Rewinding Roller and Roll Hardness Adjustment Tight rolls are rewound on first quality rollers with emery covering.
5). Auto Adjustable Tension
Automatic adjustable tension of fabrics when inspecting and rewinding.
5). Foot Switch Controlling
Foot Switch is used to start and/or stop machine flexibly during checking.
7). Data Collection and Analysis System (4-point System)- optional 100% fabric inspection with software for accurate fabric roll analysis and printout.
8). Linear Fabric Roll End Cutter-Option
Full width cutting at the end of processed roll, fast and accurate.
