SUNTECH Batching machine auto tensionless checking fulld width inspection

SUNTECH Batching machine auto tensionless checking fulld width inspection

SUNTECH Batching machine auto tensionless checking fulld width inspection
SUNTECH Batching machine auto tensionless checking fulld width inspectionSUNTECH Batching machine auto tensionless checking fulld width inspectionSUNTECH Batching machine auto tensionless checking fulld width inspectionSUNTECH Batching machine auto tensionless checking fulld width inspectionSUNTECH Batching machine auto tensionless checking fulld width inspection
CategoriesFabric Winding Machines
AlbumView larger image
BrandSuntech
ModelST-BM-01
ConditionNew
Automatic GradeAutomatic
Voltage3Phase-380V;50HZ (Adjustable)
Dimension(L*W*H)4370X2350X2210mm(ONLY FOR ST-BM-01-180)
Weight1300KGS(ONLY FOR ST-BM-01-180), 1300KGS(ONLY FOR ST-BM-01-180)
CertificationCE, ISO9001:2008
Warranty13 MONTHS
After-sales Service ProvidedEngineers available to service machinery overseas
ItemFabric Batching Machine
FOB portNingbo/Shanghai
Terms of PaymentL/C, D/A, D/P, T/T, Western Union, MoneyGram
Update Time2019-12-10
Detail Information

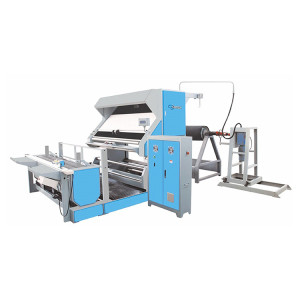

SUNTECH Automatic Edge Textile Inspection Machine
ST-BM-01 is suitable for a wide range of fabrics, especially for continuous process "A" frame batch and re-winding to small rolls.This machine can provide synchronized fabric input or output to"A"frame with constant tension control, with peripheral fabric contact for delicate or heavy duty fabrics.
Features:
1). Direct Centre Driven System for Un-winding- "A"frame fabric is unwound from non-contact center driven system checking delicate or heavy duty fabrics.
2). Auto Tensionless Checking-Speed is controlled by an adjustable light Roller Accumulator for fabric input & output automatic synchro- nization
3). Full Width Fabric Inspection- With 60 Degree Fixed Angle Inspection Screen.
4). Stable Running&Easy Operation- PLC controlling, Touching Screen operation, simple!
5). Accurate Fabric Edge Controlling- Edge alignment error 6mm. power.(Option)
6). Accurate Length Counting(Y/M) - Counting error s0.1 m/km.
7). Consistent Roll Output- Roll hardness adjustable.
8). Available for different Fabric Input and Output Presenta- tion-Synchronize with other production operations.
9). Pneumatic Roll Ejection Device-Heavy produced rolls can be pushed by the pneumatic cylinder arms so as to save labor especially ideal for nization.
10). Sampling-Fabric Sample can be taken by automatic linear cutter and the rest fabric can be stitched by automatic sewing machine for on going checking. (Option)
Model:
ST-BM-01
Speed
5-50m/min
Fabric Width
1.8-4.0 meters
Max. Un-winding Diameter
1500mm
Max Re-winding Diameter
500mm
Dimension(LXWXH)
4370x2350x2210mm(for model ST-BM-01-180 only)
Weight
1300kgs(for model ST-BM-01-180 only)
 Electric Specs
3phase-380v, 50HZ(can be adjusted to suit for different countries)
Remaik
Variable working width is possible and can be tailor-made to your requirements of processing needs.
ST-BM-01 Batching Machine (With Direct Center Driven System)
1). Direct Centre Driven System for Un-winding-"A"frame fabric is unwound from non-contact center driven system especially ideal for checking delicate or heavy duty fabrics .
2). Auto Tensionless Checking-speed is controlled by an adjustable light Roller Accumulator for fabric input& output automatic synchronization .
3). Full Width Fabric Inspection- With 60 Degree Fixed Angle inspection Screen .
4). Stable Running&Easy Operation-PLC controlling, Touching Screen operation, simple !
5). Accurate Fabric Edge Controlling- Edge alignment error ≤ 6mm.
