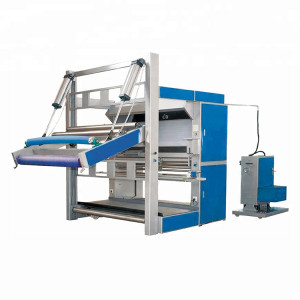

SUNTECH Big Roll Fabric Cloth Inspection Machine with A-Frame

SUNTECH Big Roll Fabric Cloth Inspection Machine with A-Frame

SUNTECH Big Roll Fabric Cloth Inspection Machine with A-Frame
SUNTECH Big Roll Fabric Cloth Inspection Machine with A-FrameSUNTECH Big Roll Fabric Cloth Inspection Machine with A-FrameSUNTECH Big Roll Fabric Cloth Inspection Machine with A-FrameSUNTECH Big Roll Fabric Cloth Inspection Machine with A-Frame
CategoriesFabric Winding Machines
AlbumView larger image
BrandSuntech
ModelST-BM-02
ConditionNew
Automatic GradeAutomatic
VoltageCustomized
Power(W)3-4 Kw
Dimension(L*W*H)4800x3100x3000mm(For model ST-BM-02-180 only)
Weight1250kgs
CertificationCE,ISO
Warranty13 months
After-sales Service ProvidedEngineers available to service machinery overseas
TypeFabric Rolling Machine(A-frame to A-frame)
FOB portNINGBO&SHANGHAI
Terms of PaymentL/C, D/A, D/P, T/T, Western Union, MoneyGram
Update Time2019-06-17
Detail Information
SUNTECH Big Roll Fabric Cloth Inspection Machine
ST-BM-02 BATCHING MACHINE (WITH DIRECT CENTRE DRIVE ST-BM-02 is suitable for a wide range of fabrics, especially for continuous process "A" frame batch and de-batch. This machine can provide synchronized fabric input or output to"A"frame with constant tension control, with peripheral fabric contact for delicate or heavy duty fabrics.
Features:
1). Direct Centre Driven System & Surface contact peripheral drive roller with pneumatically controlled arm.
2). Auto Tensionless Checking-Speed is controlled by an adjustable light Roller Accumulator for fabric input & output automatic synchro- nization
3). Full Width Fabric Inspection- With 60 Degree Fixed Angle Inspection Screen.
4). Stable Running&Easy Operation- PLC controlling, Touching Screen operation, simple!
5). Accurate Fabric Edge Controlling- Edge alignment error 6mm. power.(Option)
6). Accurate Length Counting(Y/M) - Counting error s0.1 m/km.
7). Consistent Roll Output- Roll hardness adjustable.
8). Available for different Fabric Input and Output Presenta- tion-Synchronize with other production operations.
9). Pneumatic Roll Ejection Device-Heavy produced rolls can be pushed by the pneumatic cylinder arms so as to save labor especially ideal for nization.
10). Sampling-Fabric Sample can be taken by automatic linear cutter and the rest fabric can be stitched by automatic sewing machine for on going checking. (Option)
Model
ST-BM-02
Speed
5-40m/min
Fabric Width
1.8-4.0 meters
Max. Un-winding Diameter
1800mm
Max Re-winding Diameter
1800mm
Dimension(LXWXH)
4800x3100x3000mm(for model ST-BM-02-180 only)
Weight
1250kgs(for model ST-BM-02-180 only
Electric Specs
3phase-380v; 50HZ(can be adjusted to suit for different countries)
Remark
Variable working width is possible and can be tailor-made to your requirements of processing needs.
ST-BM-02 Batching Machine (With Direct Centre Driven System)
1). Direct Center Driven System Surface Contact Peripheral Drive Roller with Pneumatically Controlled Arm-“A”frame fabric is unwound from non-contact center driven system and wound by peripheral drive roller with pneumatically controlled arm, especially ideal for checking delicate or heavy duty fabrics
2). Auto Tensionless Checking- Speed is controlled by an adjustable light Roller Accumulator for fabric input output automatic synchronization .
3). Full Width Fabric Inspection- With 30 Degree Fixed Angle Inspection Screen.
4). Stable Running &Easy Operation-plc controlling, Touching Screen operation, simple!
