SUNTECH Evolution type for raw and wet fabrics tubular slitting machine
Categories

SUNTECH Evolution type for raw and wet fabrics tubular slitting machine

SUNTECH Evolution type for raw and wet fabrics tubular slitting machine
SUNTECH Evolution type for raw and wet fabrics tubular slitting machineSUNTECH Evolution type for raw and wet fabrics tubular slitting machineSUNTECH Evolution type for raw and wet fabrics tubular slitting machine
CategoriesRope Opener Tubular Slitter
AlbumView larger image
BrandSuntech
ModelST-TFSM-01
ConditionNew
Voltage3phase-380V; 50HZ(can be adjusted to suit for different countries)
Power(W)Special Model
Dimension(L*W*H)As per different models
WeightPer model
CertificationISO,CE
Warranty13 months
After-sales Service ProvidedEngineers available to service machinery overseas
ItemKnitting Rope Opener and Slitting Machine For Textile Industry
Speed:0-80m/min
Unit PriceUS $ 4000 / piece
FOB portNINGBO/ SHANGHAI
Terms of PaymentL/C, T/T, Western Union
Update Time2021-03-04
Contact Now
Favorites
Detail Information
Vedio
Technical Specifications
Features
Packing

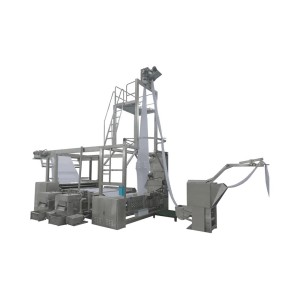

SUNTECH Fabric Rope Opener and Detwister Slitting Machine
ST-TFSM-01 is mainly applicable after rope dyeing. It is used to slit & open roped fabric and has been specially designed for continuous high speed operation in automatic mode. The machine material could be A3 Steel or Stainless Steel, which could be suitable for both raw and wet fabrics.
Model
ST-TFSM-01
Running Speed
0-100m/min
Fabric Width
2.0-2.5 meters
Max Rope Diameter
φ800mm
Material
Stainless Steel 304 for wet fabrics/A3 Steel for dry fabrics
Electric Specs
3phase -380V, 50HZ (can be adjusted to suit for different countries
Remark
Variable working width is possible and can be tailor-made to your requirements of processing needs.
ST-TFSM-01 TUBULAR FABRIC SLITTING MACHINE (EVOLUTION TYPE FOR RAW AND WET FABRICS
1). Raisable Frame and Automatic Detwister: Automatic detwister for fabric rope. The signal from feeler is picked
 up by proximity switches. Fabric rope engagement is by means of rotary opening rollers
2). Slitting Basket: By means of a handwheel, the diameter of the round basket can be expanded from 320 to 800mm, so as to facilitate the spreading of fabric and prevent permanent weft distortions, as may be generated by the slitting process
3). Needle Drop Sensor: Needle drop sensor can detect the needle drop on the fabric and adjust the basket to place the fabric in proper slitting position. Both slitting and rope opening function
4).spreading-centering Unit: It automatically open the fabric and then centre it, to ensure that the fabric is alignment in the centre of
5). Hydraulic Turntable-option: Controlled by fulid power, 1800mm diameter, for fabric carriage rotation in heavy duty conditions. It facilitate the operation of rope detwisting after wahsing or dyeing
6). Squeezing Unit for Fabric Ropes -Option: Squeezing unit J-box with an oscillating chute for self adjustment of speed, to be installed on the entry of the line to reduce the quantity of water contained in the fabric.
