SUNTECH knitted textile and woven Fabric Roll Packing Machine

SUNTECH knitted textile and woven Fabric Roll Packing Machine

SUNTECH knitted textile and woven Fabric Roll Packing Machine
SUNTECH knitted textile and woven Fabric Roll Packing MachineSUNTECH knitted textile and woven Fabric Roll Packing MachineSUNTECH knitted textile and woven Fabric Roll Packing MachineSUNTECH knitted textile and woven Fabric Roll Packing Machine
CategoriesAutomatic Fabric Packing Machines
AlbumView larger image
BrandSuntech
ModelST-ARPM
TypeWrapping Machine
ConditionNew
ApplicationApparel, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles
Packaging TypeFilm
Packaging MaterialPE FILM
Automatic GradeAutomatic
Driven TypeElectric
Voltage380V/50HZ
Power43KW(for ST-ARPM-180I)
Dimension(L*W*H)4180X2500X2190MM(for ST-ARPM-180I)
FOB portNINGBO&SHANGHAI
Terms of PaymentL/C, D/P, T/T, Western Union, MoneyGram
Update Time2019-06-17
Detail Information

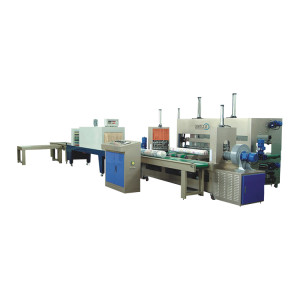

SUNTECH Fabric Roll Packing Machine
Suntech Brand Automatic Fabric Roll Wrapping Machine can be accommodated with fabric inspection machines for on-line inspecting and packing or used it separately in warehouse.The machine has a NEW DESIGN with a NEW FUNCTION of smart classification the packed rolls from different fabric inspection machines, whatever it is by order or by machine.
Model
ST-ARPM-180I
ST-ARPM-180II
ST-ARPM-240I
ST-ARPM-240II
Range of Roll Width
900-1800mm
900-1800mm
1200-2400mm
1200-2400mm
Range of Roll Diameter
100-400mm
100-600mm
100-400mm
100-600mm
Packing Capacity
5-7rolls/min
4-6rolls/min
4-6rolls/min
3-5rolls/min
Dimensions(Main Packing Unit)
4180×2500×2190mm
 4450x3220x2590mm
4780×2500x2190mm
5050x3220x2590mm
Weight
1500kgs
1600kgs
1600kgs
1700kgs
 Power Consumption
5-7bar
5-7bar
5-7bar
5-7bar
ST-ARPM Automatic Fabric Roll Packing Machine
1). Fully Automatic, Reduce Labor Force Only one operator required.
2). High Efficiency, Packing Speed Up to 7 rolls/min ST-ARPM-180I can pack 5-7 rolls/min, around 2400-3360 rolls every eight hours .
3). Material Cost Saving than Traditional Plastic Bag Around 10% cost can be saved .
4). Vacuum Packing Effect with PE Film The ideal thickness of Polythene Film is 60-80 microns.
5). Link with Inspection Machine for Online Inspecting and Packing--optional ideally, 1 set packing system supports max. 10 sets fabric inspection machines at the same time.
