SUNTECH Fabric Double Folding Tube-Sewing Machine

SUNTECH Fabric Double Folding Tube-Sewing Machine

SUNTECH Fabric Double Folding Tube-Sewing Machine
SUNTECH Fabric Double Folding Tube-Sewing MachineSUNTECH Fabric Double Folding Tube-Sewing MachineSUNTECH Fabric Double Folding Tube-Sewing MachineSUNTECH Fabric Double Folding Tube-Sewing Machine
CategoriesAutomatic Tube-sewing Machines
AlbumView larger image
BrandSuntech
ModelST-DFSM
ConditionNew
Automatic GradeAutomatic
Voltage3 phase-380V
Power(W)Special Model
Dimension(L*W*H)4750 X 3250X 3000mm(for model ST-DFSM-220 only)
Weight1500kgs(for model ST-DFSM-220 only)
CertificationCE
Warranty13 months
After-sales Service ProvidedEngineers available to service machinery overseas
Fabric Width1.2-2.4 meters
FOB portNingbo/Shanghai
Terms of PaymentL/C, D/A, D/P, T/T, Western Union, MoneyGram
Update Time2019-06-17
Detail Information

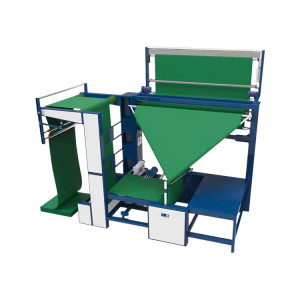

SUNTECH Fabric Double Folding Tube-Sewing Machine
ST-DFSM allows the automatization of selvedge sewing operation of knit fabrics for dyeing. Since lycra is increasingly being used in textile industry, a process of heat fixing of the fabric is required before dyeing. For this reason the raw tubular fabric has to be slit open, heat fixed and then sewn in tubular form again to be dyed.
Model
ST-DFSM
Doubling Speed
0-80m/min
Sewing Speed
0-30m/min
Fabric Width
 1.2-2meters(standard)
Needle Distance
 1-5mm(adjustable)
Dimensions(LXWXH)
 4750x3250x3000mm(for model ST-DFSM-220 only)
Electric Specs
 3phase- 380V, 50HZ (can be adjusted to suit for different countries)
Electric Specs
3phase- 380V, 50HZ (can be adjusted to suit for different countries)
Remark
Variable working width is possible and can be tailor-made to your requirements of processing needs
1). Doubling, sewing, plaiting any type of fabrics from plait/loose fabric to plait/loose fabric.
2). For proper folding, special systems for thin and sensitive fabrics as well as fabrics with curled edges.
3). PLC controlled for synchronized operation. (option)
4). Automatic alignment of selvedge on the doubling triangle with very sensitive and precise photo-electric guide edge alignment error  6mm.
5). Sewing carriage(JUKI Brand Sewing Machine/Ddl-8700) with Auto-search of the fabric edge.
6) System of motorized drawing to avoid harmful skids for the seam.
7). Accurate Length Counting(Y/M)-counting error 0.1m/km.
8). Sinale-thread Sewing Easy to open the thread once the dyeing is finished.
