SUNTECH Hydraulic Warp Beam Truck trolley for bottom transporting

SUNTECH Hydraulic Warp Beam Truck trolley for bottom transporting

SUNTECH Hydraulic Warp Beam Truck trolley for bottom transporting
CategoriesHydraulic Warp Beam Trolleys
AlbumView larger image
BrandSuntech
ModelST-HBT-01
Usageweaving beam transport
StructureRoll Container
MaterialCarbon Steel
WheelFour-wheel
ItemSuntech Hydraulic Trolley Lift For Warp Beam
Carrying Capacity1000-2500kg
Beam Flange Diameter800-1250mm
Beam Barrel Diameter100-400mm
Lifting Height700mm for bottom beam
Hydraulic CylindersTwo
FOB portSHANGHAI
Terms of PaymentL/C, T/T
Update Time2019-11-15
Detail Information

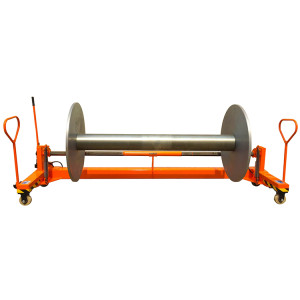

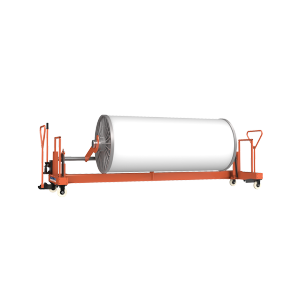

SUNTECH Hydraulic Warp Beam Truck

ST-HBT-01 HYDRAULIC WARP BEAM LIFT TROLLEY Suitable for Bottom Beam transporting, inserting in weaving machines; Warp beam weighing up to 2500kgs and beam width as per requirement. The carriage, which is equipped with oscillating suspended double wheels from a loading capacity of 2500kgs, is very gentle to the floor, because the load is really distributed to both wheels.

Carrying Capacity
1000-2500kgs Upto 5000kgs for Non-standard Model

Beam Flange Diameter
800-1250mm

Beam Barrel Diameter
100-400mm

Hydraulic Cylinders:

Two

Hydraulic Unit:

One

Lifting Height:

700mm
1).Separate steering by push/pull bar at both sides.
2).Steering in travelling direction fixable on the left and rightside.
3).Two steered wheels and two guided wheels.
4).Wheels with ball bearings and thread protection caps.
5).Lifting movement by the hydraulic foot pedal with automatic quick lift.
