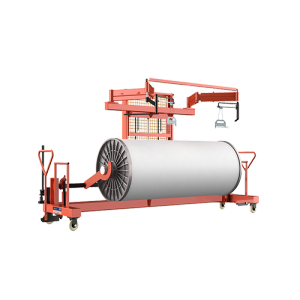

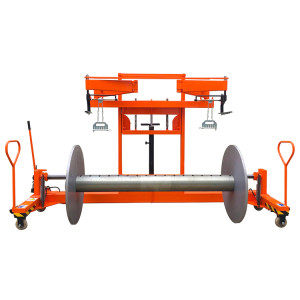

SUNTECH Hydraulic Warp Beam Lift Trolley With Harness Mounting Device

SUNTECH Hydraulic Warp Beam Lift Trolley With Harness Mounting Device

SUNTECH Hydraulic Warp Beam Lift Trolley With Harness Mounting Device
CategoriesHydraulic Warp Beam Trolleys
AlbumView larger image
BrandSuntech
ModelST-HBT-02
Usageweaving beam and heald frame transport
StructurePlatform
MaterialCarbon Steel
WheelFour-wheel
ItemWarp Beam Transporting Trolley
Carrying Capacity1000-2000kg
Beam Flange Diameter800-1250mm
Lifting Height700mm for bottom beam
Beam Barrel Diameter100-400mm
Hydraulic CylindersTwo
FOB portSHANGHAI
Terms of PaymentL/C, D/A, D/P, Western Union, MoneyGram, T/T
Update Time2019-11-15
Detail Information
SUNTECH Hydraulic Warp Beam Lift Trolley With Harness Mounting Device
 Suitable for Bottom Beam transporting, inserting in weaving machines; Warp beam weighing up to 2500kgs and an additional loading capacity of 400kgs for the heald frame. The harness is accommodated by the standard take-up for the harness frame or the complete warp stop motion.
Carrying Capacity:

1000-2500kgs for Bottom Beam
400kgs for Heald Frame
Beam Flange Diameter:

800-1250mm

Beam Barrel Diameter:

100-400mm

Hydraulic Cylinders:

Two

Hydraulic Unit:

One

Lifting Height:

700mm for Bottom Beam
1950mm for Heald Frame
1).Separate steering by push/pull bar at both sides.
2).Steering in travelling direction fixable on the left and rightside.
3).Two steered wheels and two guided wheels.
4).Wheels with ball bearings and thread protection caps.
5).Lifting movement by the hydraulic foot pedal with automaticquick lift.
6).Harness mounting device.The carrying arms are guided
parallel to keep the warp tension even.
