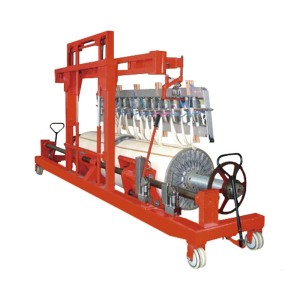

SUNTECH Hydraulic Warp Beam Lift Trolley for Twin Beam Transporting

SUNTECH Hydraulic Warp Beam Lift Trolley for Twin Beam Transporting

SUNTECH Hydraulic Warp Beam Lift Trolley for Twin Beam Transporting
SUNTECH Hydraulic Warp Beam Lift Trolley for Twin Beam TransportingSUNTECH Hydraulic Warp Beam Lift Trolley for Twin Beam TransportingSUNTECH Hydraulic Warp Beam Lift Trolley for Twin Beam Transporting
CategoriesHydraulic Warp Beam Trolleys
AlbumView larger image
BrandSuntech
ModelST-HBT-03
UsageIndustrial
StructureRoll Container
MaterialStainless Steel
WheelFour-wheel
ItemSuntech Hydraulic Warp Beam Lift Trolley With Harness Mounting Device
Carrying Capacity1000-2000kg
Beam Flange Diameter800-1250mm
Lifting Height:700mm for bottom beam,1950 for head frame
Beam Barrel Diameter100-400mm
Hydraulic CylindersTwo
FOB portSHANGHAI
Terms of PaymentL/C, T/T
Update Time2019-05-19
Detail Information
SUNTECH Hydraulic Warp Beam Lift Trolley for Twin Beam Transporting
Carrying Capacity:

1000-2500kgs for Bottom Beam
400kgs for Heald Frame

Beam Flange Diameter:

800-1250mm

Beam Barrel Diameter:

100-400mm

Hydraulic Cylinders:

Two

Hydraulic Unit:

One

Lifting Height:

700mm for Bottom Beam
1950mm for Heald Frame
1).Separate steering by push/pull bar at both sides.
2).Steering in travelling direction fixable on the left and rightside.
3).Two steered wheels and two guided wheels.
4).Wheels with ball bearings and thread protection caps.
5).Lifting movement by the hydraulic foot pedal with automaticquick lift.
6).Harness mounting device.The carrying arms are guided
parallel to keep the warp tension even.
