SUNTECH Tubular Knitted Fabric Inspection Machine

SUNTECH Tubular Knitted Fabric Inspection Machine

SUNTECH Tubular Knitted Fabric Inspection Machine
SUNTECH Tubular Knitted Fabric Inspection MachineSUNTECH Tubular Knitted Fabric Inspection MachineSUNTECH Tubular Knitted Fabric Inspection Machine
CategoriesGreige Fabric Inspection Machines
AlbumView larger image
BrandSuntech
ModelST-TFIM
Fabric TypeTubular Fabric
Inspection Speed0-50m/min
Fabric Roll Diameter500mm(Standard)
CertificationCE,ISO
Warranty13 months
BrandSUNTECH
Automatic GradeAutomatic Grade
ApplicationTextile
VoltageSingle Phase-220V;50HZ
Fabric Width400-1250mm
FOB portSHANGHAI/ NINGBO
Terms of PaymentL/C, D/A, D/P, Western Union
Update Time2019-06-17
Detail Information

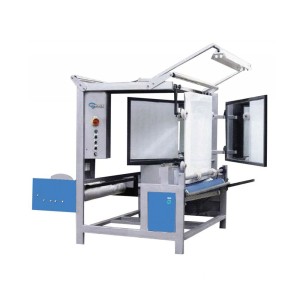

SUNTECH Tubular Knitted Fabric Inspection Machine
TUBULAR FABRI ST-TFIM is specially designed for easily and efficiently inspect the both sides of tubular fabric in single pass opera- tion. The fabric is loaded and pass to the fabric checking light box, through two mirrors, the operator can check both sides of fabric. This machine can be supplied to operate fabrics from roll to roll or plait; or with various other fabric inlet and outlet easily options.
Features:
1). Fabric Rolling Drawer-With upper delivery mode lessen fabric tension and more convenient for inspection.
2). The inspection speed is controlled by inverter as requirement.
3). High Voltage Dispenser- For lightening system-special device provides electricity power to the Fabric Checking Box wireless.
4). Multi-size Inspection Lightening Cabinets from Width 16"-50" for Requirements of Various Fabric.- This special box installed magnetic block in the bottom to suspen- sion automatically against the roller to eliminate crease marks to fabric.
5). Easy Operation Panel-Only few push buttons to run the machine smoothly.
6). Remote Foot Pedal for convenient operation.
Model
ST-TFIM
Speed
0-50m/min
Fabric Width
400-1250mm
Standard Roll Diameter
500mm
Dimensions(LXWXH)
2300X1700X2070mm
Weight
800kg
Electric Specs
Single-phase/220V; 50HZ(can be adjusted to suit for different countries)
Remark
Various working width is possible and can be tailor-made to your requirements of processing needs.
ST-TFIM Tubular Fabric Inspection Machine
1). Fabric Rolling Drawer-with upper delivery mode lessen fabric tension and more convenient for inspection
2). The inspection speed is controlled by inverter as requirement.
3). High Voltage Dispenser- For lightening system-special device provides electricity power to the Fabric Checking Box wireless .
4). Multi-size Inspection Lightening Cabinets from Width 16 "for Requirements of Various Fabric.- This special box installed magnetic block in the bottom to suspen sion automatically against the roller to eliminate crease marks to fabric .
5). Easy Operation Panel-only few push buttons to run the machine smoothly.
6). Remote Foot Pedal for convenient operation.
