SUNTECH Motorized Warp Beam Lift Trolley With Harness Mounting Device

SUNTECH Motorized Warp Beam Lift Trolley With Harness Mounting Device

SUNTECH Motorized Warp Beam Lift Trolley With Harness Mounting Device
CategoriesMotorized Warp Beam Carriers
AlbumView larger image
BrandSuntech

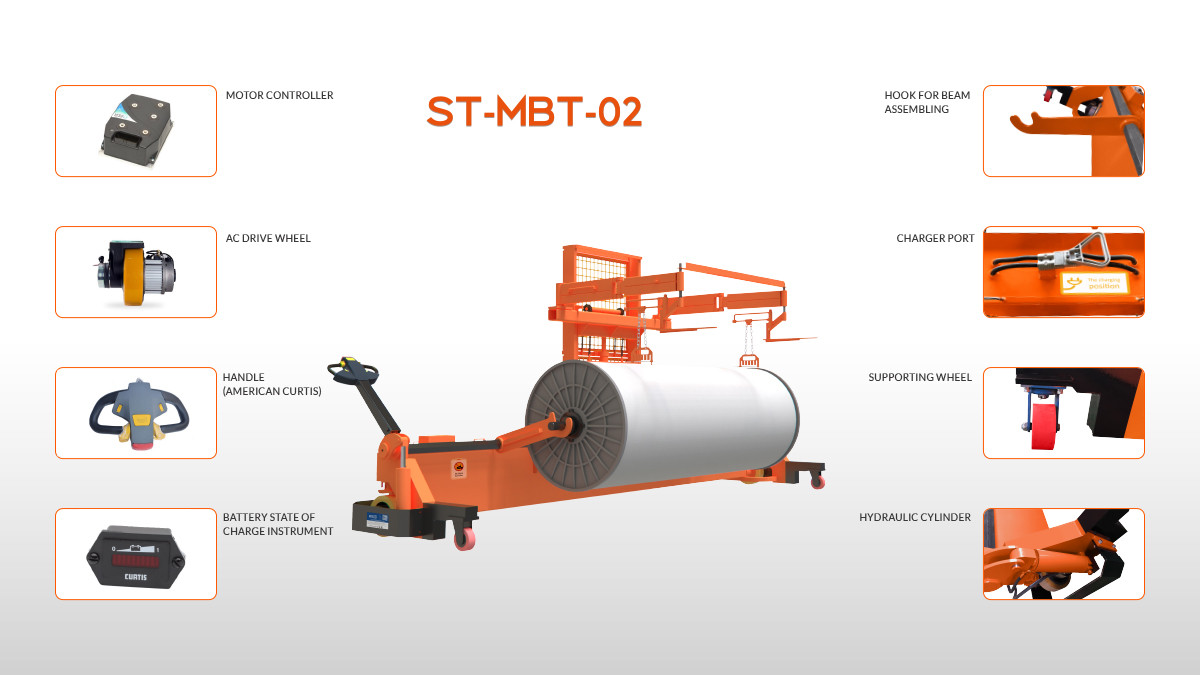

ModelST-MBT-02
UsageIndustrial
StructureRoll Container
MaterialStainless Steel
WheelFour-wheel
ItemMotorized Warp Beam Lift Trolley
After-sales Service ProvidedEngineers available to service machinery overseas
Carrying Capacity1000-2500kg
Beam Flange Diameter800-1250mm
Beam Barrel Diameter100-400mm
FOB portSHANGHAI
Terms of PaymentL/C, T/T
Update Time2019-05-19
Detail Information

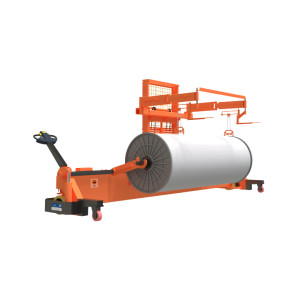

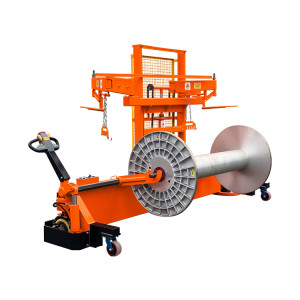

SUNTECH Motorized Warp Beam Lift Trolley
Carrying Capacity:

1000-2500kgs for Bottom Beam 400kgs for Heald Frame

Beam Flange Diameter:

800-1250mm

Beam Barrel Diameter:

100-400mm

Lifting/Driving:

Two DC motors

Battery:

24V/210Ah(240Ah)

Lifting Height:

800mm for Bottom Beam
2000mm for Heald Frame
1).Regular drive with 2-DC drive motors.
2).Maintenance-free battery.
3).Electronic pulse steering for smooth starting and braking.
4).Automatically extending support rollers for transverse movement.
5).Lifting movement by the motor-driven with automatic quick lift.
6).Harness mounting device.The carrying arms are guidedparallel to keep the warp tension even.
