SUNTECH Motorized Twin Warp Beam Lift Trolley With Harness Mounting Device

SUNTECH Motorized Twin Warp Beam Lift Trolley With Harness Mounting Device

SUNTECH Motorized Twin Warp Beam Lift Trolley With Harness Mounting Device
CategoriesMotorized Warp Beam Carriers
AlbumView larger image
BrandSuntech
ModelST-MBT-03
Usageweaving beam and heald frame transport
StructureRoll Container
MaterialCarbon Steel
WheelFour-wheel
ItemElectric Beam Trolley
Carrying capacity1000-2500KGS
Beam flange diameter800-1250mm
Beam barrel diameter100-400mm
Warranty13 months from date of shipment
FOB portSHANGHAI
Terms of PaymentL/C, T/T
Update Time2019-09-18
Detail Information

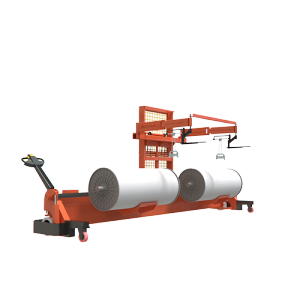

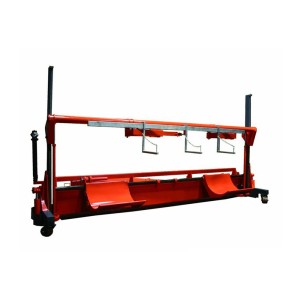

SUNTECH Motorized Twin Warp Beam Lift Trolley
(FOR TWIN WARP BEAMS; WIDER WIDTH) Suitable for Twin Bottom Beams transporting, inserting in weaving machines. The harness is accommodated by the standard take-up for the harness frame or the complete warp stop motion.
Carrying Capacity:

1000-2500kgs for Bottom Beam
400kgs for Heald Frame
Beam Flange Diameter:

800-1250mm
Beam Barrel Diameter
100-400mm

Lifting/Driving:

Two DC motors

Battery
24V/210Ah(240Ah)

Lifting Height:

800mm for Bottom Beam
2000mm for Heald Frame
1).Regular drive with 2-DC drive motors.
2).Maintenance-free battery.
3).Electronic pulse steering for smooth starting and braking.
4).Automatically extending support rollers for transverse movement.
5).Lifting movement by the motor-driven with automatic quick lift.
6).Harness mounting device.The carrying arms are guided parallel to keep the warp tension even.
