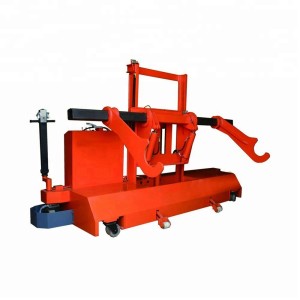

SUNTECH Motorized Upper Warp Beam High Lift Trolley

SUNTECH Motorized Upper Warp Beam High Lift Trolley

SUNTECH Motorized Upper Warp Beam High Lift Trolley
CategoriesMotorized Warp Beam Carriers
AlbumView larger image
BrandSuntech
ModelST-MBT-04
Usageweaving beam transport
StructureRoll Container
MaterialCarbon Steel
WheelFour-wheel
ItemMotorized Warp Beam High Lift Trolley
certificationCE,ISO 9001
warranty13 months from date of shipment
carring capacity1000-2000kg
beam flange diameter800-1100mm
beam barrel diameter100-400mm
FOB portSHANGHAI
Terms of PaymentL/C, T/T
Update Time2019-09-18
Detail Information
SUNTECH Motorized Twin Warp Beam Lift Trolley
Suitable for Upper Beam transporting, inserting in weaving machines; the removal of batches from the winder; the loading of warp beam storage racks and batch storage racks; the mounting of sectional beams in knitting machines as well as the handling of non-woven material rolls.
Carrying Capacity:

Carrying Capacity:

Beam Flange Diameter:

800-1100mm

Beam Barrel Diameter:

100-400mm

Lifting/Driving:

Two DC motors

Battery:

24V/210Ah(240Ah)

Lifting Height:

2300mm
1).Regular drive with 2-DC drive motors.
2).Maintenance-free battery.
3).Electronic pulse steering for smooth starting and braking.
4).Automatically extending support rollers for transverse movement.
5).Lifting movement by the motor-driven with automaticquick lift.
