Home > Products > Machines for Weaving Factory > Motorized Warp Beam Carriers >

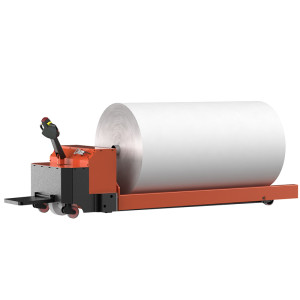

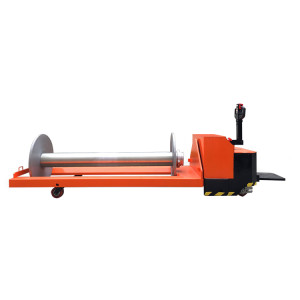

SUNTECH Motorized Warp Beam Low Lift Trolley

SUNTECH Motorized Warp Beam Low Lift Trolley

SUNTECH Motorized Warp Beam Low Lift Trolley
CategoriesMotorized Warp Beam Carriers
AlbumView larger image
BrandSuntech
ModelST-MBT-09
Machine TypeMotorized Warp beam Low lift Trolley
ProductWarp beam/SIze beam/Weaving beam/Fabric roll
Material CapabilitiesYarn
ConditionNew
CertificationCE, CE
Warranty13 Months
Carrying Cappacity800-2000kg
Beam Flange Diameter800-1250mm
FOB portSHANGHAI
Terms of PaymentL/C, T/T
Update Time2019-07-18
Detail Information

Warp Beam Truck. Suntech Brand, Model ST-MBT-09

This trolley is designed for the easy transport of warper's beams and warp beams weighing up to 2500kgs and is also suitable for longer distances, e.g. from the warping frame to the warping machine or to the warehouse.
Carrying Capacity:

Carrying Capacity:

Beam Flange Diameter:

800-1250mm

Lifting/Driving:

Two DC motors

Battery:

24V/210Ah(240Ah)

Lifting Height:

110mm
1).Strong,robust travelling mechanism.
2).Polyurethane running wheels cushion the vehicle whiledriving on a rough roadway surface.
3).Solid prismatic supports.
