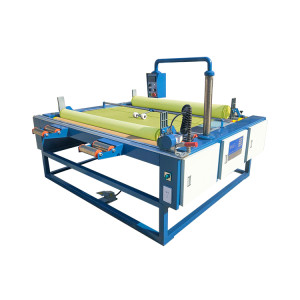

SUNTECH Garment factory or textile distributor Fabric Rolling and measuring Machine

SUNTECH Garment factory or textile distributor Fabric Rolling and measuring Machine

SUNTECH Garment factory or textile distributor Fabric Rolling and measuring Machine
SUNTECH Garment factory or textile distributor Fabric Rolling and measuring MachineSUNTECH Garment factory or textile distributor Fabric Rolling and measuring MachineSUNTECH Garment factory or textile distributor Fabric Rolling and measuring Machine
CategoriesFabric Rolling Machines
AlbumView larger image
BrandSuntech
ModelST-HRM
ConditionNew
AutomationAutomatic
CertificationCE
After-sales Service ProvidedEngineers available to service machinery overseas
Dimension(L*W*H)2000*1700*865mm (per model)
BrandSUNTECH
Weight600kgs (ST-HRM-160 only)
StatusNew
Warranty13 months
Speed0-90 m/min (Stepless)
FOB portNINGBO/SHANGHAI
Terms of PaymentL/C, D/A, D/P, T/T, Western Union, MoneyGram
Update Time2019-04-25
Detail Information
SUNTECH Fabric Rolling Machine
Model
ST-HRM
Speed
0-90m/min
Fabric Width
 1. 6-4.0 meters
Standard Roll Diameter
500mm
Dimensions(LXWXH)
2000×1700×865mm( for model ST-HRM-160only)
Electric Specs
3 Phase-380v, 50HZ( Can be adjusted to suit for different countries)
Remark
Variable working width is possible and can be tailor-made to your requirements of processing needs
ST-HRM Fabric Rolling & Measuring Machine (Ideal For Garment Factory & Fabric Distributor)
1). Accurate Length Counting(Y/M)-counting error ≤ 0.1m/km.
2). Full Width Fabric Inspection- with fixed flat inspection screen.
3). Sturdy Roll Cradle for the coming fabric roll unwinding.
4). Consistent Roll Output- Roll Hardness adjustable.
5). Movable wheel.
6). Foot Switch for easy Stop/Start controlling.
7). Linear Fabric End Cutter-optional.
