SUNTECH Moterized Warp Beam Lift Carrier Trolley

SUNTECH Moterized Warp Beam Lift Carrier Trolley

SUNTECH Moterized Warp Beam Lift Carrier Trolley
CategoriesMotorized Warp Beam Carriers
AlbumView larger image
BrandSuntech
ModelST-MBT-01
UsageWeaving beam transport
StructureRoll Container
MaterialCarbon Steel
WheelFour-wheel
ItemAutomatic Warp Beam Trolley With Long Warranty
After-Sales ServiceEngineers available to service machinery overseas
Warranty13 Months from the date of shipment
DrivenTwo AC motors
Carrying Capacity1000-2500kgs
Beam Flange Diameter100-400mm
FOB portSHANGHAI
Terms of PaymentL/C, T/T
Update Time2019-10-17
Detail Information

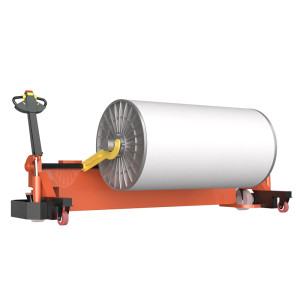

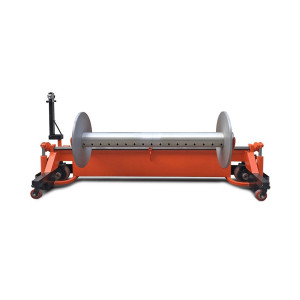

SUNTECH Moterized Warp Beam Lift Trolley
Suitable for Bottom Beam Transporting,inserting in weaving machines;warp beam weghing up to 2500kgs and beam width as per requirement.
Carrying Capacity:

1000-2500kgs Upto 5000kgs for Non-standard Model

Beam Flange Diameter:

800-1250mm

Beam Barrel Diameter:

100-400mm

Lifting/Driving:

Two DC motors

Battery:

24V/210Ah(240Ah)

Lifting Height:

800mm
1).Regular drive with 2-DC drive motors.

2).Maintenance-free battery.

3).Electronic pulse steering for smooth starting and braking

4).Automatically extending support rollers for transversemovement.

5).Lifting movement by the motor-driven with automaticquick lift.
