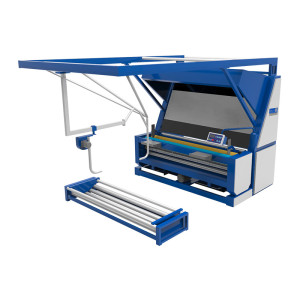

Suntech Tubular fabric Slitting and Inspection Machine

Suntech Tubular fabric Slitting and Inspection Machine

Suntech Tubular fabric Slitting and Inspection Machine
CategoriesGreige Fabric Inspection Machines
AlbumView larger image
BrandSuntech
ModelST-KFIM-02
Warranty:13 Months
Voltage:3 Phase-380V 50Hz
Fabric Width:1800-4000mm
Fabric Output Form:Plaited, Roll and A-frame
Roll Diameter at Output:500-1400mm
Speed:5-60m/min
FOB portNINGBO /SHANGHAI
Terms of PaymentL/C, D/A, D/P, Western Union, T/T
Update Time2019-07-18
Detail Information
ST-KFIM-02 Gray fabric slitting & inspection machine,it is suitable for knitted fabrics,input from tubular fabrics and output to open width knitted fabric in rolls.
Features: 1). End of Fabric Roll Stop Sensor- Allow for next roll joining, continuously from one piece of fabric to next.
2). Full Width Fabric Inspection- With 30 degree fixed angle inspection screen.
3). Accurate Length Counting(Y/M) - Counting error s0.1m/km.
4) Available for different Fabric Input and Output Presentation, like plait to plait, roll to plait etc.- Synch ronize with other production operations
Fabric Width
1800-4000mm
Speed
5-60m/min
Standard Roll Diameter
500mm
Electric Specs
3Phase-380V; 50Hz(can be adjusted to suit for different countries)
Remark
Variable working width is possible and can be tailor-made to your requirements of processing needs.
Excellent Features of SUNTECH Garment Defects Fabric Inspection Method


1) Low Tension Fabric Delivery and Speed Synchronization Unique mechanical and electric device combination for making fabric feeding, delivering and re-winding synchronous.


2) Full Width Fabric Inspection - with 45 Degree Fixed Angle Inspection Screen Fabric can be checked under the aid of different viewing and lighting options.


3) Accurate Fabric Length and Optional Weighing Machine. Fabric roll length and weight can be taken by industrial standard measuring systems with digital readouts to give consistent fabric roll assessments.


4) Stretch Fabric Control - with Scroll Roller System and De-curling System. Fabric controlled from input to electro/ pneumatic edge guilding system for perfect roll generation.


5) Consistent Roll Output - with Twin Rewinding Roller and Roll Hardness Adjustment Processed rolls are rewound with the minimum amount of tension and are consistent from roll to roll.


6) Versatile Fabric Input and Output Options - Synchronize with Other Production Operations Optional systems are available for different fabric input and output presentations, roll to roll, continuous fabric input and plait input and output.


7) Pneumatic Roll Ejection Device - Optional Heavy produced rolls can be pushed by the pneumatic cylinder arms so as to save labour power.


8) Data Collection and Analysis System ( 4-point System) - Optional 100% fabric inspection with software for accurate fabric roll analysis and printout.


9) Automatic Linear Cut ( Fabric Roll End Cutter) - Optional Full width cutting at the end of processed roll, fast and accurate.
