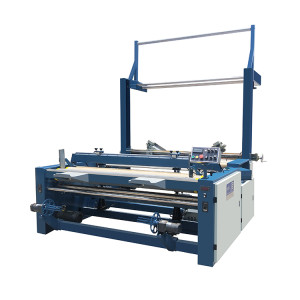

SUNTECH Fabric Edge Cutting slitting Machine (Laser/Heat/Cold/Ultrasonic )

SUNTECH Fabric Edge Cutting slitting Machine (Laser/Heat/Cold/Ultrasonic )

SUNTECH Fabric Edge Cutting slitting Machine (Laser/Heat/Cold/Ultrasonic )
SUNTECH Fabric Edge Cutting slitting Machine (Laser/Heat/Cold/Ultrasonic )SUNTECH Fabric Edge Cutting slitting Machine (Laser/Heat/Cold/Ultrasonic )SUNTECH Fabric Edge Cutting slitting Machine (Laser/Heat/Cold/Ultrasonic )SUNTECH Fabric Edge Cutting slitting Machine (Laser/Heat/Cold/Ultrasonic )
CategoriesFabric Selvedge Slitting Machine
AlbumView larger image
BrandSuntech
ModelST-USCM
ConditionNew
ApplicationUltrasonic selvedge cutting machine
Automatic GradeAutomatic
Production Capacity0-30m/min
Voltage380V, 50HZ, 3Phase(could be adjusted to suit for different countries)
Power(W)3kw
Dimension(L*W*H)2786mm(L) x 2620mm(W) x 2820mm(H)(only for model ST-USCM-180)
Weight800KGS(Only for model ST-USCM-180 only)
CertificationCE, ISO
Warranty13months
Unit PriceUS $ 15000 / piece
FOB portNINGBO/ SHANGHAI
Terms of PaymentL/C, T/T, Western Union
Update Time2019-05-19
Detail Information
SUNTECH Fabric Edge Cutting Machine (Cold cutter)
SUNTECH Fabric Edge Cutting Machine (Heat cutter)
Model
ST-USCM
Speed
0-30m/min
Fabric Width
1.8-4.meters
Standard Roll Diameter
500mm
Dimension
2786x2620x2820mm(for model ST-USCM-180)
Weight
700kgs(for model ST-USCM-180)
Electric Specs
3phase-380v; 50HZ(can be adjusted to suit for different countries)
Remark
Variable working width is possible and can be tailor-made to your requirements of processing needs
ST-USCM Ultrasonic cutting Machine(Fabric Selvedge Or Strip Cutting)
1). End of Fabric Roll Stop Sensor- Allow for next roll joining, continuously from one piece of fabric to next
2). Accurate Length Counting(Y/M)-counting error <0.1m/km
3). Consistent Roll Output- Roll hardness adjustable
 4). Perfect Edge Alignment Accurate Selvedge Cutting- Special device to make the cutting error +/-5mm
5). Waste collection after cutting
6). Available for different Fabric Input and Output Presentation, like plait to roll, roll to roll etc. Synchronize with other production operations 7). Full Width Fabric Inspection (option)
