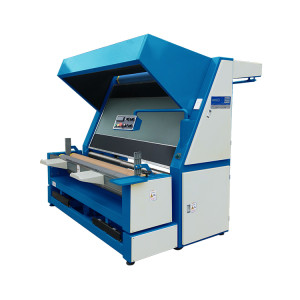

SUNTECH Accurate length counting Woven Fabric Inspection Machine Without operator's platform

SUNTECH Accurate length counting Woven Fabric Inspection Machine Without operator's platform

SUNTECH Accurate length counting Woven Fabric Inspection Machine Without operator's platform
SUNTECH Accurate length counting Woven Fabric Inspection Machine Without operator's platformSUNTECH Accurate length counting Woven Fabric Inspection Machine Without operator's platform
CategoriesFabric Inspection Machines
AlbumView larger image
BrandSuntech
ModelST-WFIM-T
ConditionNew
Automatic GradeAutomatic
Voltage3 phase-380V; 50HZ (Adjustable)
Power(W)According to fabric width
Dimension(L*W*H)3050X2630X2430mm(FOR ST-WFIM-180 ONLY)
Weight700KGS(FOR ST-WFIM-180 ONLY)
CertificationCE, ISO9001:2008
Warranty13 MONTHS
After-sales Service ProvidedEngineers available to service machinery overseas
BrandSUNTECH
FOB portSHANGHAI/ NINGBO
Terms of PaymentL/C, D/A, D/P, Western Union
Update Time2019-10-17
Detail Information
SUNTECH Woven Fabric Inspection Machine For Different Fabric
ST-WFIM-G Fabric Inspection Machine is used to handle a wide range of rolled fabrics, which is especially designed for garment factories. This machine can be used for fabric inspection, measuring, rolling and cross cutting purpose.
ST-WFIM-VI
1.Ergonomically designed
2.Fast and easily handled, requiring for one operator only
3.Improve fabric quality
4.Synchronize production process
5.Provide objective quality reporting 5.Reduce administration
Model:
ST-WFIM
Fabric Width:
1.8~4.0 meters
Standard Roll Diameter:
500mm
Dimensions(LXWXH)
3050x2630x2430mm(for model ST-WFIM-180 only)
Weight:
1000kgs(for model ST-WFIM-180 only)
Electric Specs:
3phase-380v; 50HZ(can be adjusted to suit for different countries)
Remark:
Variable working width is possible and can be tailor-made to your requirements of processing needs.
ST-WIFM Woven Fabric Inspection Machine (Economic Type-For Denim Fabric Also)
1). End of Fabric Roll Stop Sensor- Allow for next roll joining, continuously from one piece of fabric to next.
2). Full Width Fabric Inspection-with 30 degree fixed inspection screen.
3). Accurate Length Counting(Y/M)-counting error ≤01m/km.
4). Accurate Fabric Edge Controlling- Edge alignment error ≤6mm.
5). Consistent Roll Output- Rol hardness adjustable.
6). Available for different Fabric Input and Output Presentation, like plait to roll, roll to roll etc.- Synchronize with other production operations .
7). Selvedge Shifting Device-ideal for Thick/Sulzer Selvedges. (Option)
