SUNTECH New Arrivel Electric Warp Beam Lift Trolley With Harness Mounting Device

SUNTECH New Arrivel Electric Warp Beam Lift Trolley With Harness Mounting Device

SUNTECH New Arrivel Electric Warp Beam Lift Trolley With Harness Mounting Device
CategoriesMotorized Warp Beam Carriers
AlbumView larger image
BrandSuntech
ModelST-MBT-02I
Usageweaving beam and heald frame transport
StructureRoll Container
MaterialCarbon Steel
WheelFour-wheel
ItemMotorized Warp Beam Lift Trolley
After-sales Service ProvidedEngineers available to service machinery overseas
Carrying Capacity1000-2500kg
Beam Flange Diameter800-1250mm
Beam Barrel Diameter100-400mm
FOB portSHANGHAI
Terms of PaymentL/C, T/T
Update Time2019-11-15
Detail Information

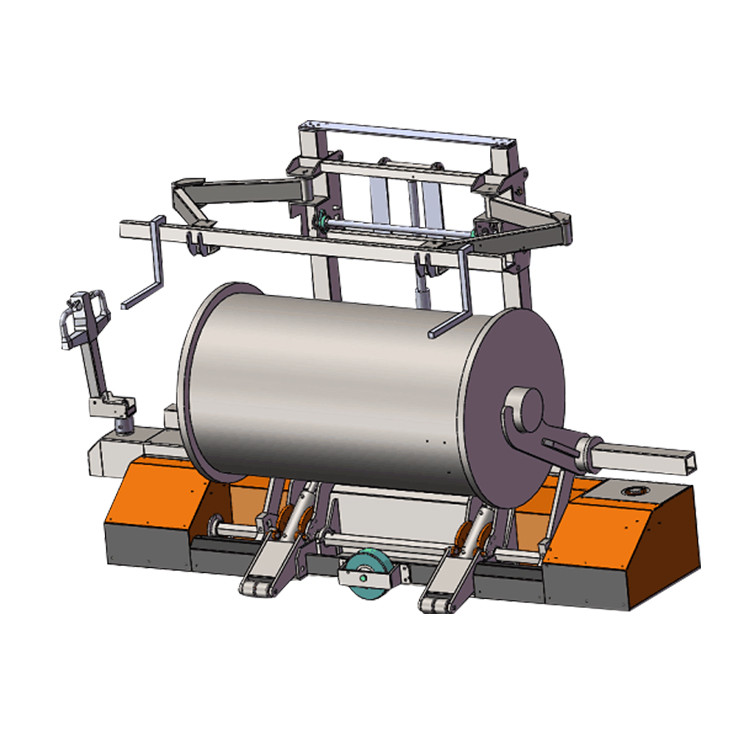

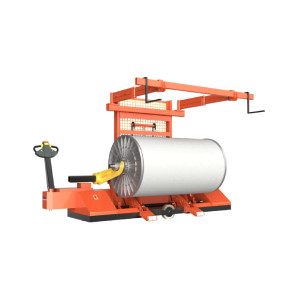

SUNTECH Motorized Warp Beam Lift Trolley
ST-MBT-02I Electric Warp Beam Lift Trolley with Harness Mounting Device is the NEWES MODEL,suitable for bottom beam transporting, inserting in weaving machines. warp beam weighing up to 2000kg and beam width as per requirement. additional loading capacity of 400kg for harness. The trolley is applicable for any weaving machines with their normal working width 170-340cm without changing its size. A transverse of 10cm for easy beam positioning.

The harness is accommodated by the standard take-up for harness frame and the contact rails and dividing rails or the complete warp stop motion.
Carrying Capacity:

1000-2500kgs for Bottom Beam 400kgs for Heald Frame

Beam Flange Diameter:

800-1250mm

Beam Barrel Diameter:

100-400mm

Lifting/Driving:

Two DC motors

Battery:

24V/210Ah(240Ah)

Lifting Height:

800mm for Bottom Beam
2000mm for Heald Frame
1)Suitable for any weaving machines with their nominal working width 170-340cm without changing its size. A transverse of 10cm for easy beam positioning.
2)Regular drive with 2-AC drive motors.
3)Maintenance - free battery.
4)Electronic pulse steering for smooth starting and braking.
5)Automatically extending support rollers for transverse movement.
6)Lifting movement by motor-driven with automatic quick lift.
7)Harness mounting device. The carrying arms are guided parallel to keep the warp tension even.
