An AI-powered fabric inspection system does more than find defects. What matters is whether the system records its position, builds the report, and ties it to the right roll.
A system that shows the defect picture but not where it sits leaves the operator guessing. A later complaint may force a full re-check, with no way to confirm the roll.A complete inspection pass covers five steps: detect, locate, record, report, and trace, and the rest of this article walks through each one.
What are the five steps of an inspection pass?
A full inspection pass should not stop at finding defects; the result has to turn into data you can look up and use.
Step | Action | Output | Paper does it |
Detect | Find the anomaly | A defect flag | By eye |
Locate | Fix the position | Position on roll | Estimate by hand |
Record | Save roll and defect | A searchable record | Hand sheet |
Report | Sum up the result | Roll/shift report | Re-typed later |
Trace | Link to the roll | Queryable record | Paper |
An automated system runs the early steps with the camera, software, and data module; what runs on its own depends on the configuration.Manual inspection finds defects and keeps a sheet. The difference is the join: automation ties detection, position, and record into one flow, which cuts re-entry.
What really matters is not how many defects you found, but whether each one points to an exact position, a full record, and the right roll.
Why must location follow detection?
Finding a defect is only the first step; the operator still needs to know where it is, to judge the spread and decide what to do.
Take a 500-metre roll with one local defect. A system that records the position, say 2.4 metres from the start and 15 centimetres from the selvedge, lets the worker check that spot and decide on isolation or a cut-out.A system that records only "one defect found", with no position, makes later handling hard. The worker may re-run the whole roll, the defect stays unlocated, and the mill may hold the roll, widen the check, or miss the faulty section.
The defect count shows the result; the position gives the basis for what happens next.
Good position data helps a mill in four ways:
Find the problem area fast, with less re-checking.
Judge which section to isolate or cut, avoiding wasted material.
Check the position and range when a customer complains.
Feed the defect back to the right production step to find the cause.
A 500-metre roll with a local defect can be graded, and the mill can isolate that section instead of rejecting the whole roll. The companion piece argues for inspection as the first AI step: why it comes first in a mill. This one shows what happens to the data after the machine is in.
How does the system find a defect's position?

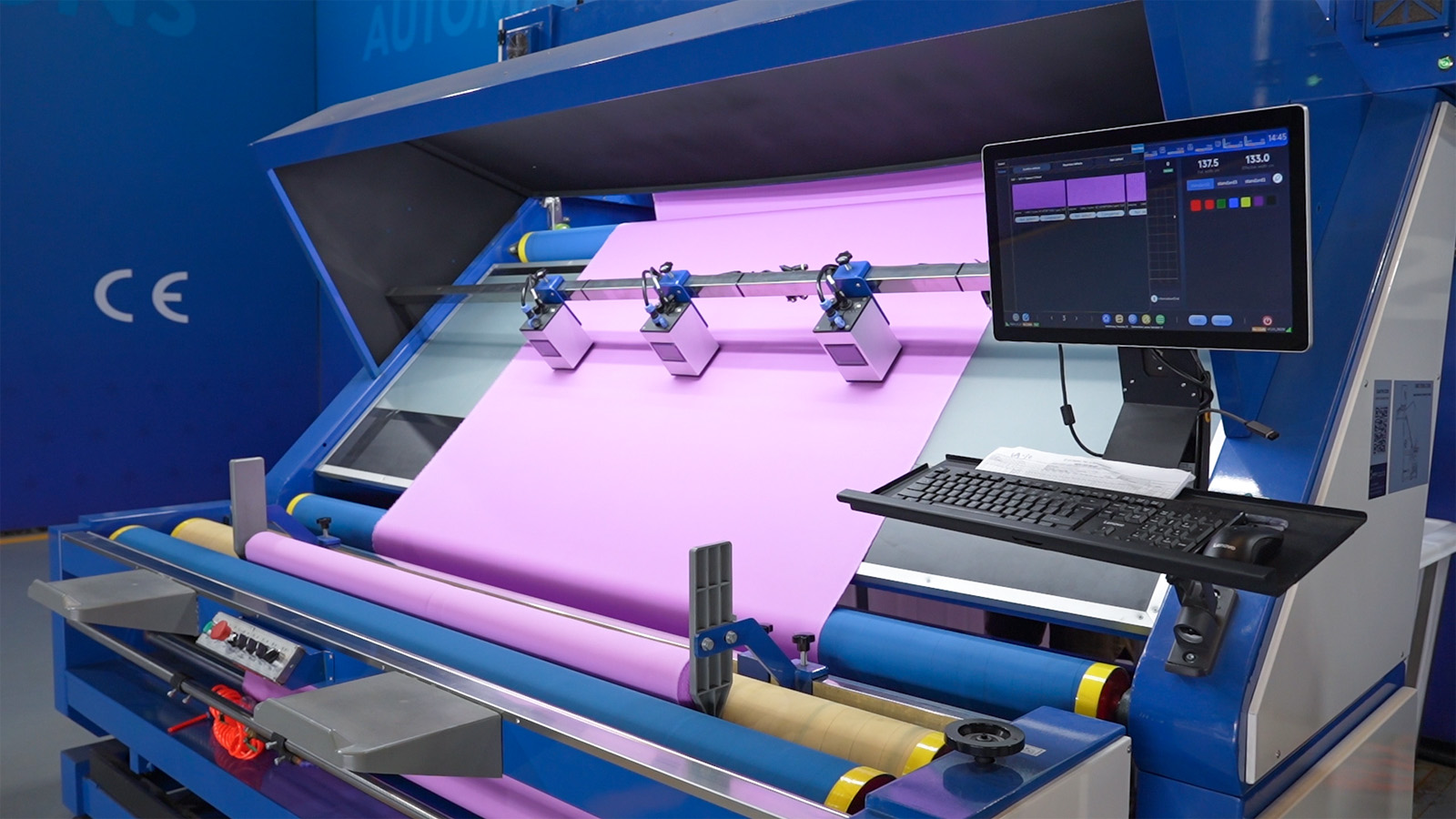

Positioning starts with how the camera and the moving cloth relate. During inspection the camera captures images. The system reads cloth speed or length, and matches each one to a point on the cloth.
The software flags a defect and saves the image, the position data, and the defect data. Those three form one searchable record the worker can read and place on the roll.
The defect map and the position log let the quality team see whether the problem repeats, and check it against loom logs to find the cause upstream, turning one picture into data for analysis and traceability.
Real positioning accuracy depends on the camera, the length-measuring method, the calibration, and the running conditions; we confirm it against the spec and an actual test for each project. Our fabric inspection system combines camera inspection with cloth motion data to inspect and record, and the exact positioning features depend on the model and the project setup.
What data does the system record, and how does it report?
After inspection the system must keep enough data, and a roll record usually covers three types.
1. Roll basics: roll number, fabric type, width, and length. These fields identify the roll and speed up later searches.
2. Defect data: defect type, size, and position along and across the roll. Which fields get recorded depends on the software and the setup.
3. Inspection result and grade: a graded inspection can record a score or grade per configuration; support for a specific rule depends on the equipment.
These data feed a roll or shift report for the quality team. Report formats and exportable fields differ by project, so confirm what the system reports against your process and needs.The key value of automated recording is a report built on saved inspection data, which cuts re-entry and manual sorting.The report does not need everything; fields that support a quality judgement and the next step deserve priority.
What quality problems can roll traceability solve?
Roll number, inspection result, and defect position, once linked, let the mill answer key questions:
Which roll had the problem?
Where on the roll was the defect?
What was the inspection result of that roll?
Can other production or quality records tied to that roll be found?
These questions help with complaints, faulty-cloth isolation, and production analysis.A customer reports a local defect. The quality team queries by order, roll number, or record, then checks the position and result.Complete records let the mill narrow the search and handle the complaint with precision, instead of guessing where the problem was.
Traceability has clear limits. The inspection system records the roll number, but dyeing, finishing, or cutting may run on separate systems that never pass the roll number or batch ID along, which is exactly where the trace chain breaks.Roll traceability depends on whether each later step keeps and links the identifying information; the fabric inspection machine category page compares how machines fit the chain.
A good position record helps the mill judge how much to isolate or re-check for faulty cloth. Whether to handle only the local section still depends on the defect nature, the quality standard, and the customer's needs.
Where does paper inspection fall short?
Traditional manual inspection has value: an experienced inspector finds many cloth problems, and paper keeps a record.The difficulty appears when volume grows, fields multiply, or records are searched weeks later; a manual flow struggles to balance speed, accuracy, and efficiency.
It shows up in three ways.
1. Recording speed is at the mercy of manual work. The cloth keeps moving while the operator watches, judges, and writes; recording that cannot keep up simplifies position and type, and later use suffers.
2. Manual position is not always precise. A sheet that says "middle of the roll" or "about one third in" leaves others guessing. Different marks across operators also make later checks harder.
3. Searching old records can take long. A complaint covers a roll made weeks ago, and the mill digs through paper and matches numbers one by one; records in different shifts or files make the search harder.
These problems stay hidden on inspection day, then slow things at complaint, audit, or problem-check time.
An automated system cuts some manual recording and searching through structured records; the gain still depends on the configuration and the mill's data discipline.
How do you judge if the system truly fits your mill?
The value of an AI fabric inspection system should not rest on demos alone. What matters is whether the system meets the real needs of inspection, recording, and traceability.
Check these points when evaluating equipment:
Detection ability: the system catches the cloth defects common in your mill, and performs under different cloth and production conditions.
Positioning ability: it gives a defect position your floor can verify, and the accuracy meets production needs.
Data recording: it keeps roll number, defect type, position, and other needed fields.
Report function: it supports the roll reports, quality stats, or data export your mill needs.
Traceability: the inspection record matches the actual roll, and the system supports data hand-off to other production steps if needed.
These questions beat a bare count of recognisable defect types, because they cover the full flow.
Where the data becomes usable
AI-powered fabric inspection is not just swapping human visual check for automated detection. It is also about how the result is saved and used. From spotting a defect and fixing its position, to recording roll data and building the report, to the traceability that follows, every step decides whether the data works in production.A result that cannot be located may need extra checks. A record that cannot match a roll hurts history search and complaint handling.
Evaluating equipment means looking past detection performance. Ask what position data, record fields, report functions, and traceability the equipment provides, and confirm they fit your mill.The most practical first step is to ask the supplier for one real roll record. Get it from a line like yours, and check for roll number, defect type, position, and result. A concrete record beats a demo.
