For textile mills, roll packing is the final step before finished fabric moves into the warehouse or to the customer. It affects more than appearance. Packing speed, labor requirements, labeling accuracy, film consumption, and production traceability can all affect the real cost of each finished roll.
An automatic fabric roll packing machine can automate feeding, measuring, wrapping, sealing, labeling, and sorting. However, the machine with the highest headline speed is not necessarily the right choice for every mill.
Before comparing suppliers, look at these seven factors.
Seven factors to check before comparing suppliers
1. Check the Actual Roll Diameter and Width
Machine speed should always be considered together with roll size.

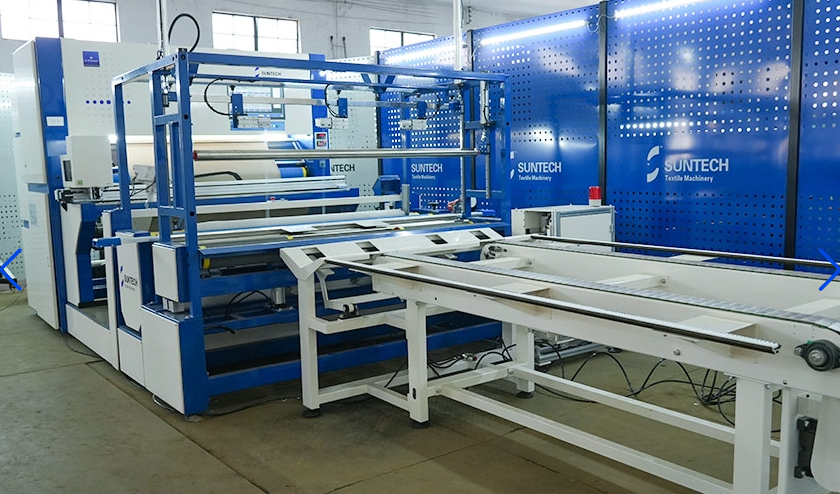

For ourST-ARPM automatic fabric roll packing machine, the available configurations cover roll widths of approximately 900–1800 mm or 1200–2400 mm, with roll diameters from 100–400 mm or 100–600 mm. Depending on the configuration and roll size, rated throughput can reach 5–7 rolls per minute. The wider 240II configuration is rated at 3–5 rolls per minute.
These figures should be treated as rated machine capacity, not automatically as your production speed.
A larger roll generally requires more time for handling and wrapping. If your mill regularly produces large-diameter rolls, ask the supplier for the expected throughput at your actual roll diameter rather than relying on the maximum number in the brochure.
A useful question for any supplier is: What speed can the machine maintain with our largest standard roll?
2. Calculate Labor Savings Realistically
Labor is often one of the main reasons mills consider automatic roll packing.
A fully automatic packing line may require one operator per shift to load film, monitor the machine, clear occasional jams, and check packing quality. However, the actual labor saving depends on what happens to the operators who previously packed the rolls.
If they are simply moved to another task in the factory, the machine may reduce manual work without immediately reducing payroll.
This is why a proper ROI calculation should separate:
Operators physically removed from the packing process
Operators reassigned to other work
Additional production capacity created by automation
Reduced handling and sorting work
The last point is particularly important for mills handling multiple batches, shades, or customer orders.
3. Look Beyond Film Price
Film is an ongoing operating cost, so it should be included in the machine evaluation.
Film consumption depends on roll dimensions, film thickness, wrapping method, overlap, and sealing requirements. Instead of comparing film prices alone, ask suppliers about expected film consumption and waste under your actual operating conditions.
Film quality also affects package reliability. Film thickness and shrink characteristics need to match the wrapping and sealing process. A package that fails during storage or transportation can create rework, replacement, freight, or customer-claim costs.
For this reason, film waste and seal consistency are more useful purchasing indicators than film price alone.
4. Make Labeling Part of the Production Process
A fabric roll label may contain the style or SKU, batch number, shade, length or weight, grade, and barcode.
When this information is entered manually from paper records, errors can occur between inspection, packing, and warehousing. A correctly wrapped roll with the wrong label is still a production problem.

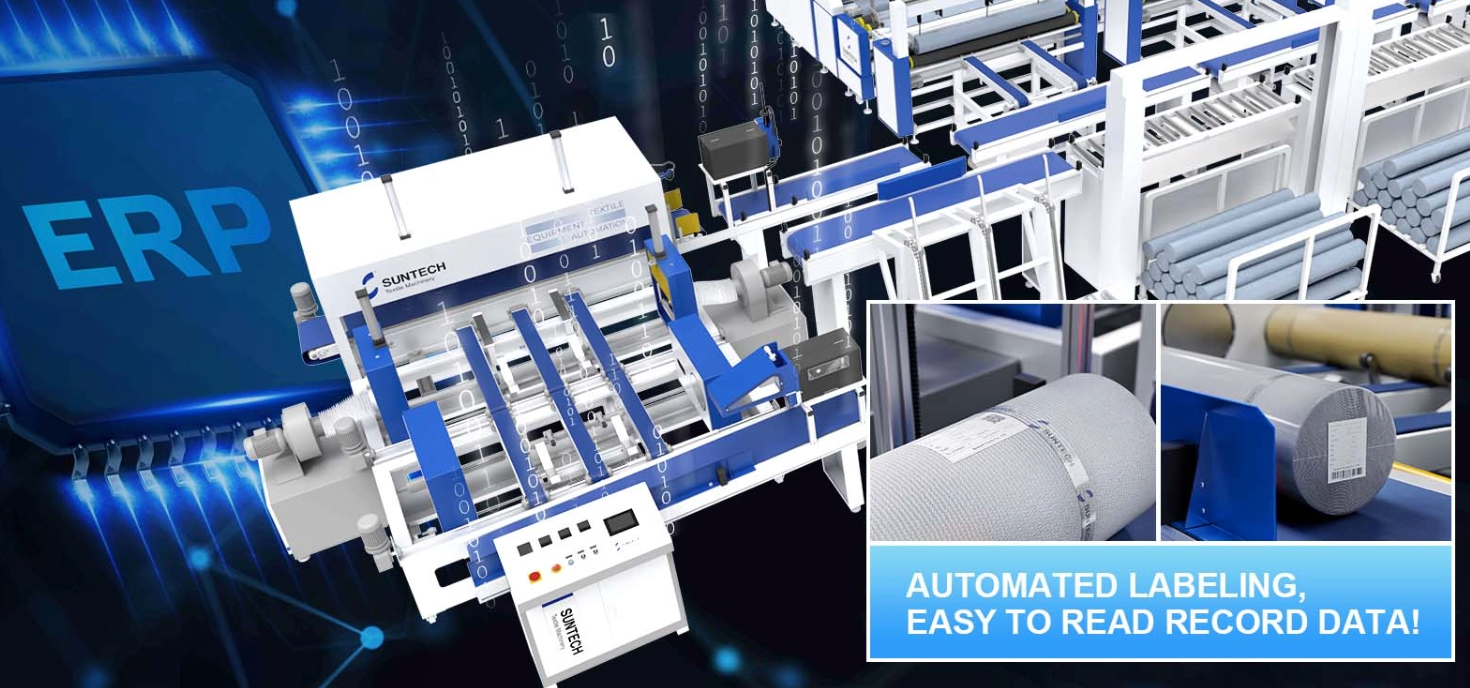

An automated system can connect roll information to the packing process so that the correct identification follows the roll.
When evaluating a machine, ask:
What label formats are supported?
Can barcodes be printed and scanned?
Can roll information come directly from the production system?
Can the system connect with ERP or MES?
How are different batches and shades sorted?
Confirm the required data format during the technical review and include it in the project specification.
5. Choose Between Manual, Semi-Automatic and Fully Automatic
There is no single automation level that suits every textile mill.
Manual packing can be practical for low production volumes, highly mixed orders, or operations where flexibility is more important than throughput.
Semi-automatic packing can be suitable for mills with moderate production volumes that want to reduce repetitive manual work without fully automating the line.
Fully automatic packing becomes more relevant when production is continuous, roll volumes are high, batches are numerous, and consistent labeling and sorting are important.
The right choice depends more on production conditions than on mill size alone.
A mill producing 400 rolls per month in a few large batches may have very different requirements from a mill producing 2,000 rolls across many smaller batches and shades.
6. Consider Inspection and Packing as One Workflow
One of the most useful opportunities for automation is connecting fabric inspection data with packing.
If inspection and packing operate as completely separate processes, roll information may need to be handled more than once. Inspection results can remain in the quality-control system while the packing operator relies on separate records.
An integrated workflow can transfer information such as roll grade, inspection results, or defect-related data into the packing process. Rolls can then be identified, labeled, and routed according to their production status.
This approach can improve traceability and reduce manual data entry between inspection, packing, and warehousing.
On the inspection side, ourAI fabric inspection system records defect positions and grades against every roll before it reaches the packing line.
For mills looking at both inspection and packing automation, an integrated solution such as ourST-AIPM inspection and packing line can be considered. Its specification lists a detection rate of 90% or above and packing speeds of up to 7 rolls per minute, depending on configuration.
How to Evaluate the ROI of a Roll Packing Machine
A simple payback calculation should not be based on machine speed alone.
Payback period = machine investment ÷ annual benefit
For a useful calculation, prepare your actual production data:
Rolls per shift
Average and maximum roll diameter
Roll width
Operators currently involved in packing
Number of batches and shades
Current film consumption
Current packing errors or rework
Working days per year
With these figures, the supplier can calculate expected throughput at your actual roll dimensions instead of using only the headline machine speed.
Final Checklist Before Buying
Before selecting an automatic fabric roll packing machine, confirm five things:
Actual throughput at your normal and maximum roll diameter
Required operators and how labor will be reassigned
Film consumption and sealing performance
Labeling, barcode, ERP/MES and traceability requirements
Power, compressed air, floor loading and installation space
The goal is not simply to buy the fastest packing machine. It is to choose a system that fits your roll dimensions, production mix, labor model, quality process, and warehouse workflow.
If you are evaluating a packing line, provide your roll width, roll diameter range, rolls per shift, fabric type, current packing method, and film specification. These details are enough to start evaluating the required configuration and realistic throughput.
