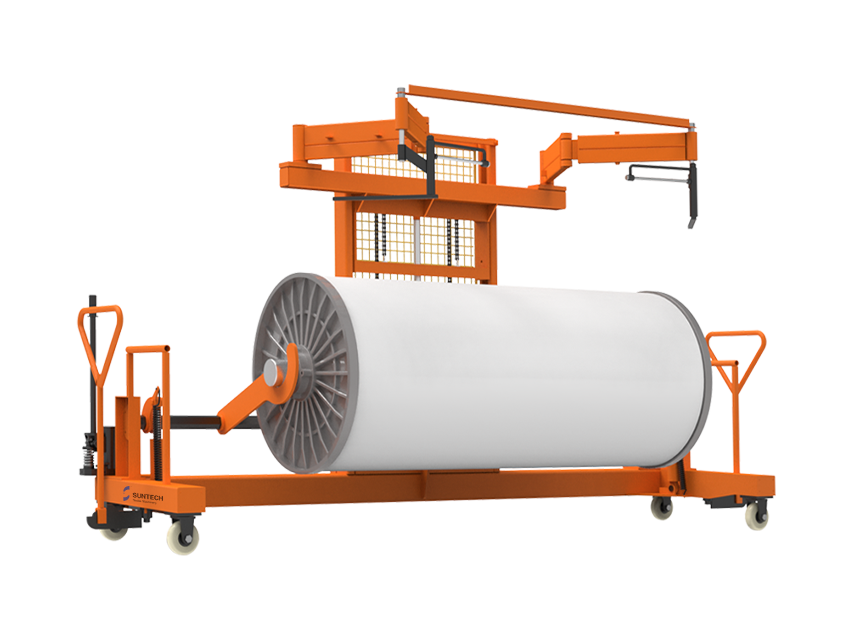

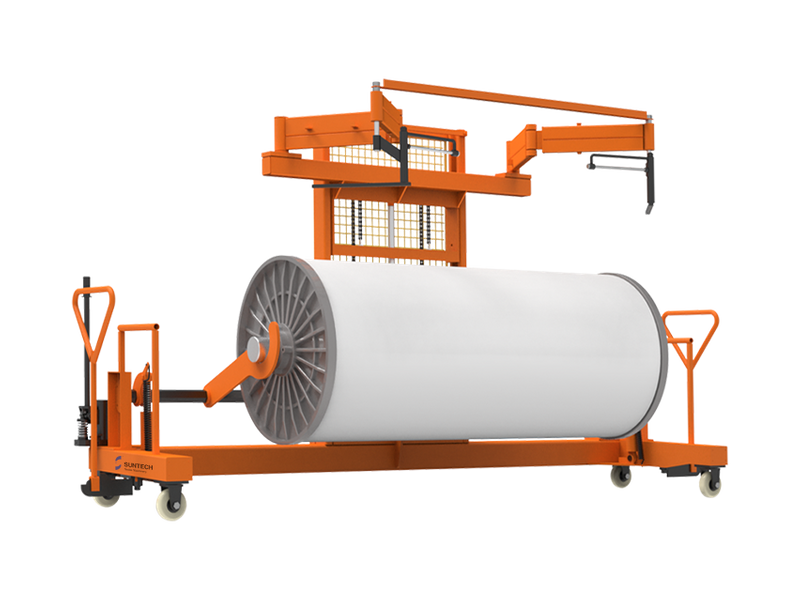

Hydraulic Warp Beam Lift Trolley with Harness Mounting Device

ST-HBT-02
hydraulic warp beam lift trolley with harness mounting device
THE ECONOMIC SOLUTION OF WARP BEAM HANDLING FOR WEAVING MILLS
Features of Hydraulic Warp Beam Lift Trolley With Harness Mounting Device
Heavy Load, Carrying Capacity up to 2500 kgs
Maximum Lifting Height up to 700 mm
Customized for All Different Width Looms
INQUIRY
DOWNLOAD
Heavy Load, Carrying Capacity up to 2500 kgs

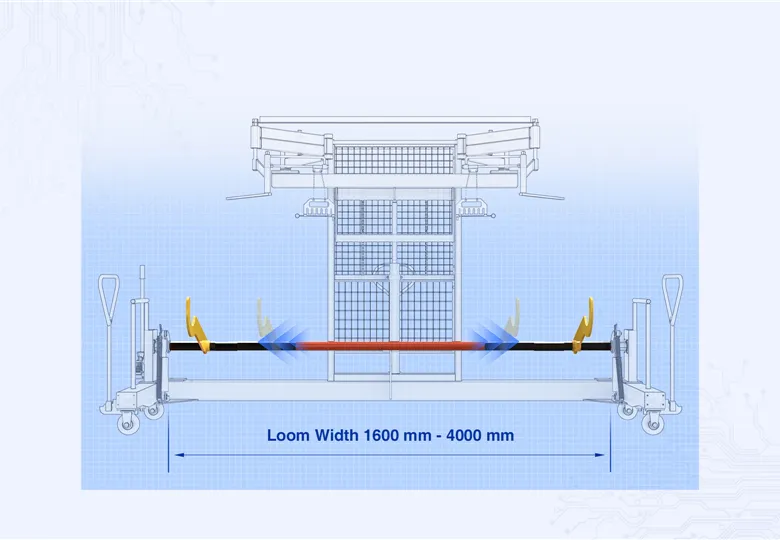

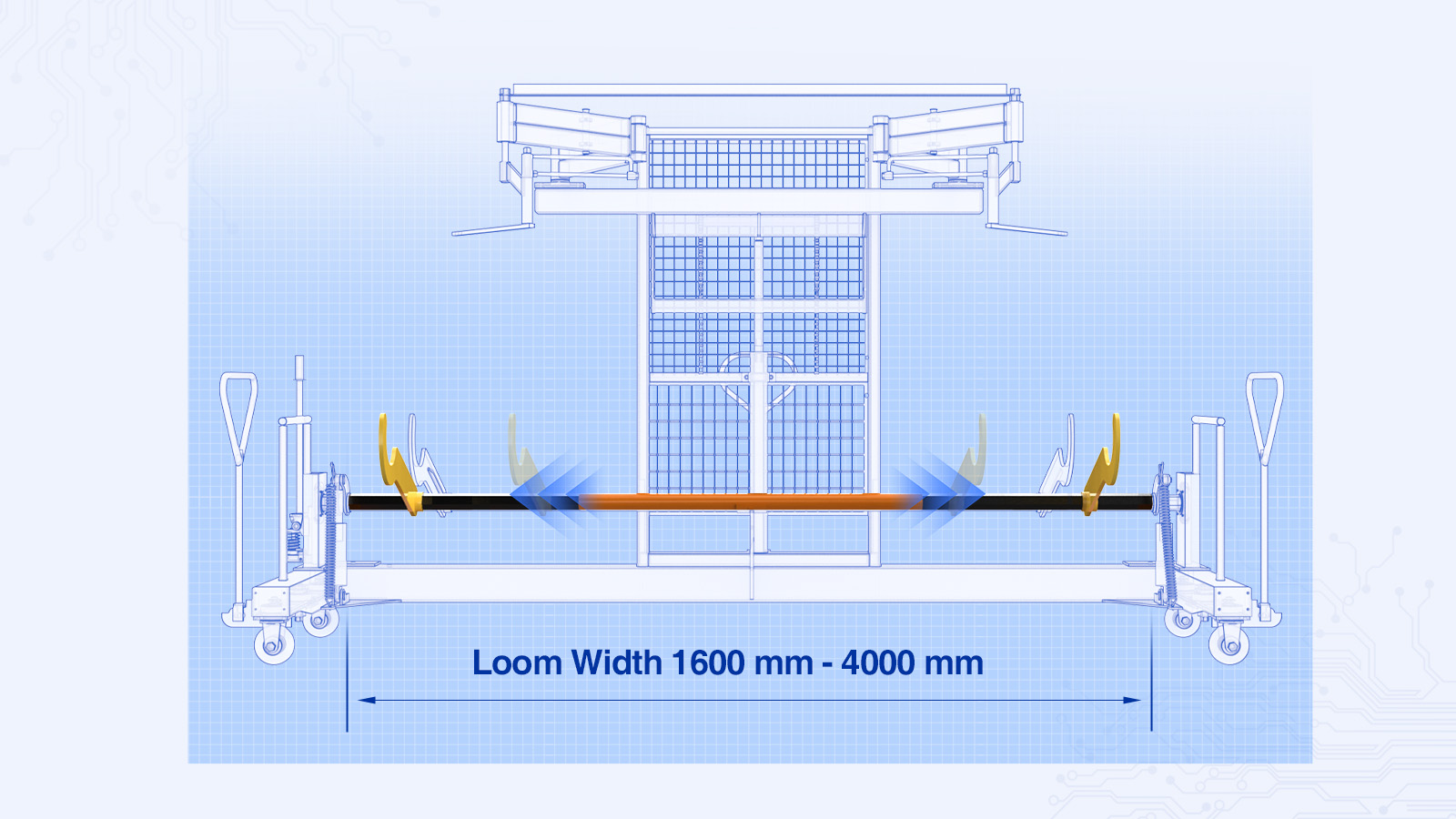

Suitable for Loom Width 1600 mm - 4000 mm
Customized for Different Width Looms from Various Brands
Specification
Carrying Capacity
2500 kgs(Bottom Beam)300 kgs(Heald Frame)
Lifting Height
700 mm(Bottom Beam)1820 mm(Heald Frame)
Beam Flange Diameter
800-1250 mm
Hydraulic Cylinders
3
Hydraulic Unit
2
Options
Pneumatic Roll Ejection Device
Automatic Selvedge Shifting Device
Touching Screen
